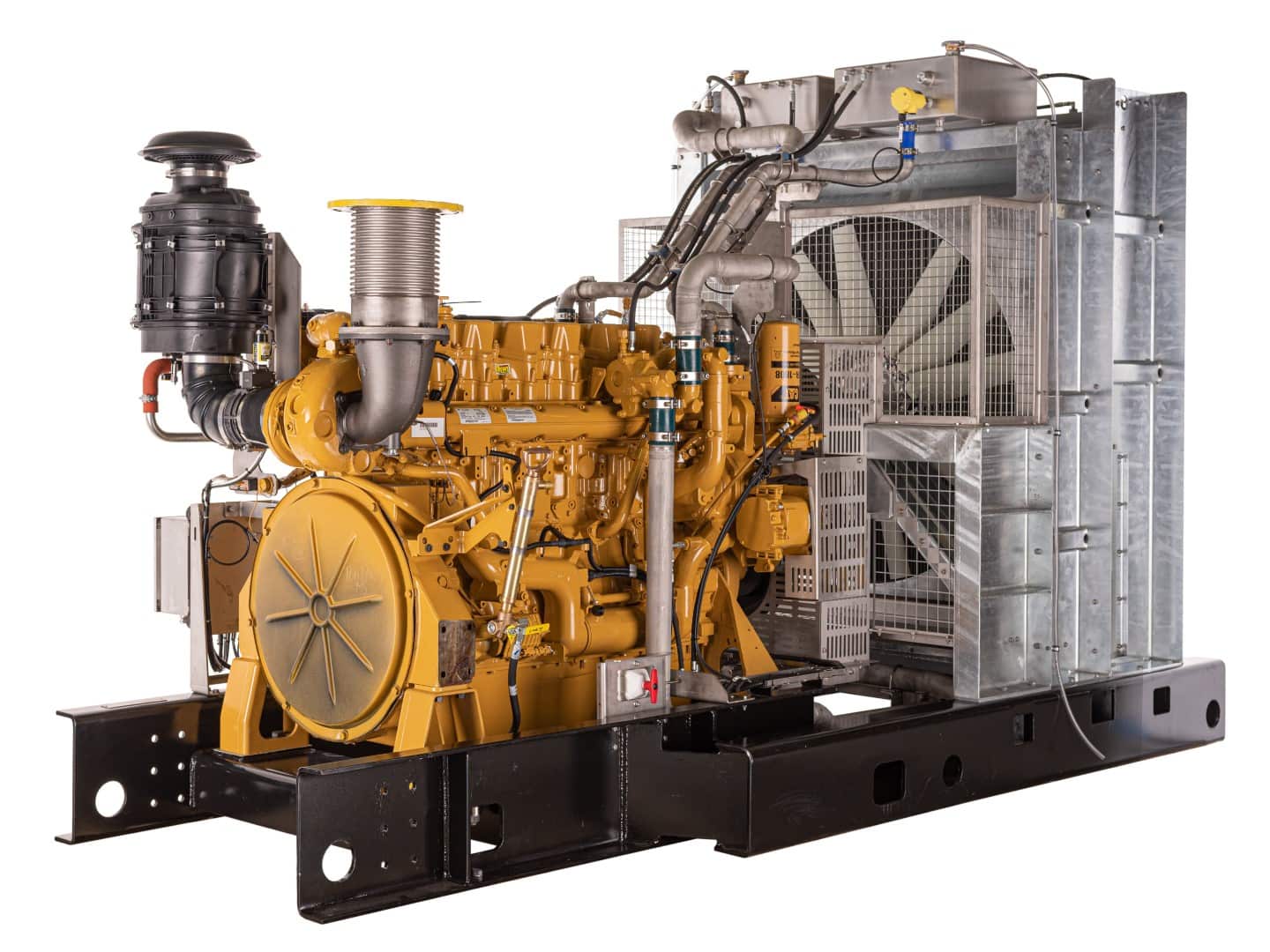

650C – Safe Zone power pack based on Caterpillar C-18 marine engine

Engine: Caterpillar C-18 marine

Power output:

• Keel cooling: 623 HP @ 1800 rpm
• Radiator cooling: 593 HP @ 1800 rpm

Speed governor: fix speed / electronic

Cranking system:

• pneumatic – standard
• electric incl. battery an alternator – optional
• hydraulic – optional

Exhaust mission: EPA Marine Tier 3, IMO Tier II

Safety system: overspeed protection with intake shutoff valve

Control system: DECAM – optional

Design temperature: +40°C

Destination: Zone 2 potentially hazardous area according ATEX directive
