Batchmixer units

Our diesel driven batchmixer units range from 50bbl up to 150 bbl. All models can be customized according to Customers specifications. All Zone 2 batchmixer units are delivered with JB Group’s own 3GHI Protection™ system and are certified by DNVGL for operation without exhaust flame arresters in Hazardous Areas (Zone 2).

All batchmixer units can be fully certified in accordance with local requirements such as ATEX, IECEx, NORSOK Z-015, OLF 70, Puwer, GOST, etc. Also DNVGL-ST-E272 certification and SOLAS compliance is also available on request. All units will be CE marked. The units are certified by a third party (DNVGL) and delivered with full documentation and warranty. Our range of batchmixer units can be delivered designed for Acid service, with chemical injection systems etc.

Our batchmixer units are capable of operating in ambient temperatures from –20° C to +50° C depending of the design chosen. Lifting frame/container are designed and approved in accordance with DNVGL-ST-E271 and EN 12079. Frames are sandblasted and painted in compliance with offshore specifications in NORSOK M-501.

Some of our available designs:

  • BMU 50: 2 x 25bbl, diesel driven, Zone 2.
  • BMU 100: 2 x 50bbl, diesel driven, Zone 2.
  • BMU 150: 2 x 75bbl, diesel driven, Zone 2.

Contact us for more information

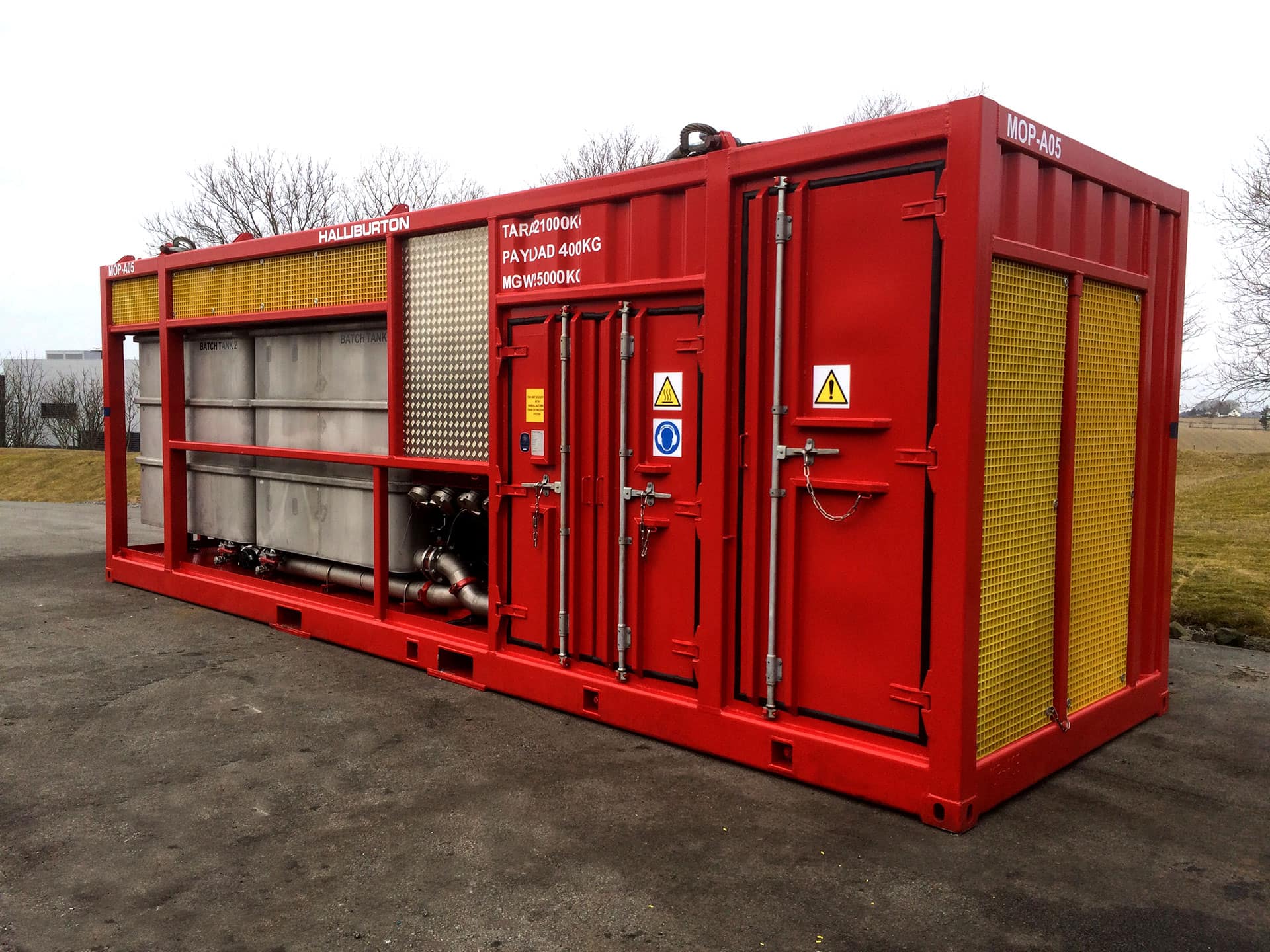

BM 100

JBWS BMU 100, 2 x 50BBL, ATEX/IECEX Zone 2. Chemical injection integrated.
